By Vanessa Salvia

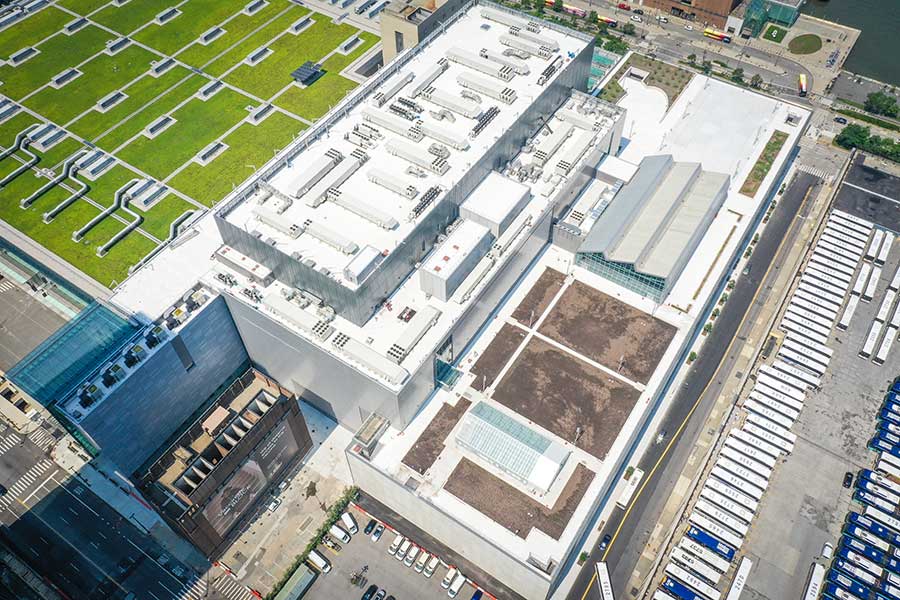

A drone shot of the green roof on the Javits Center in New York, which is now the third largest green roof in the U.S.

Just as wearing light-colored clothing on a hot, sunny day results in a cooler feeling on your skin, cool roofs can make any building feel more cool on a hot, sunny day. A cool roof is one that has been designed to reflect more sunlight and absorb less heat than a standard roof. The higher solar reflectivity, meaning the ability to reflect the sun’s visible and ultraviolet light wavelengths, enables the roof to reduce heat transfer to the building. According to Energy Savers, standard or dark roofs can reach temperatures of 150°F or more in the summer sun while a cool roof under the same conditions could stay more than 50°F cooler and save energy and money by using less air conditioning.

Yes, the color of the roof makes a difference, and designing a white or light-colored roof is an easy way to impart cool roof characteristics. But there is more to it than that. In fact, some areas require them.

A white roof is just one way to impart cool roof characteristics. But there is more to it than that. In fact, some areas require cool roofs.

In 2005, California required cool roofs on all non-residential, low-sloped construction and re-roofing projects. Title 24 has been updated several times since then to cover more structures, including residential and high-sloped roof applications. As of January 1, 2010, the California Energy Commission’s updated Title-24 Building Energy Efficiency Standards to mandate cool roofs for most residential buildings in many of California’s 16 climate zones. Since then, other states and cities have followed suit, such as Arizona. A Tucson study concluded that cool roofing was found to save up to 50% of cooling costs.

Cool roofs are measured by two factors: solar reflectance (SR) and thermal emittance (TE). SR refers to a material’s ability to reflect the sun’s solar energy back into the atmosphere. TE refers to how much of the absorbed heat is released. The higher the solar reflectance, the more the roof surface is able to reduce heat transfer into the building (the more heat is reflected from the roofing material). Aged solar reflectance is the solar reflectance of the surface after three years, which typically is lower than the initial reflectance value. To qualify as a cool roof, the roofing material must have a Cool Roof Rating Council (CRRC) rating for reflectance and thermal emittance and must meet the aged reflectance and thermal emittance values specified in the energy code. Different code requirements apply to different roof styles, such as low-sloped or steep-sloped.

Polyglass’s Polyfresko Membranes such as Polyfresko G cap sheets have a highly reflective granule surface which meets or exceeds most standards for cool roofing. “Polyfresko G cap sheets are available as an APP or SBS membrane, and can be installed as self-adhered or heat-welded or torch-applied,” says Polyglass product management. “This product has an initial solar reflectance of 96 and a three-year aged SR of 83.” According to the U.S. Green Building Council, to earn LEED points for heat island reduction, the roofing material for a low-sloped roof must have an interior SR of 82 and an aged SR of 64, while a steep-sloped roof must have an interior SR of 39 and an aged SR of 32.

Benefits of a Cool Roof

The primary benefit of cool roofs on homes is that they help lower roof and attic temperatures, which reduces the need for air conditioning on hot, sunny days. On non-residential buildings, they perform in similar ways, reducing the need for air conditioning, decreasing energy use on hot days, helping reduce air pollution and greenhouse gas emissions, and complying with building energy standards and green energy programs.

Cool roofs can be made of a specifically designed paint, a sheet covering, or tiles or shingles with highly reflective qualities.

Cool roofs reduce the effect of the urban heat island, in which urbanized areas experience higher temperatures than outlying areas due to buildings, roads, and other infrastructure absorbing and re-emitting the sun’s heat to a greater degree than natural landscapes. According to the Environmental Protection Agency, daytime temperatures in urban areas are about 1 to 7°F higher than temperatures in outlying areas and nighttime temperatures are about 2 to 5°F higher.

Cost of a Cool Roof

The EPA reports that cool roof coatings on a low-slope roof might cost 75 cents to $1.50 per square foot, while single-ply cool roof membrane costs vary from $1.50 to $3.00 per square foot. The cost premium for cool roofs versus conventional roofing materials ranges from zero to 5 or 10 cents per square foot for most products, or from 10 to 20 cents for a built-up roof with a cool coating used in place of smooth asphalt or aluminum coating. A California study found that cool roofs provide an average yearly net savings of almost 50 cents per square foot.

Cool Roofing Materials

Cool roofs can be made of a specifically designed paint, a sheet covering, or tiles or shingles with highly reflective qualities. Numerous materials including tile, metal, asphalt, and coatings that meet the cool roof requirements mean that cool roofs are available in a wide variety of colors and shades.

Historically, cool roofs have been either white or light in color. Newer roofing materials, such as those designed by CertainTeed, can achieve EnergyStar-qualified levels of solar reflectivity even in darker colors. CertainTeed’s Presidential Solaris and Landmark CL roofing shingles are available in shades of rich grays and browns. All of these colors are rated by the Cool Roofing Rating Council (CRRC) for cool roofs and can be used to comply with the 2016 California Title 24 Part 6 Cool Roof Requirements. Some utility companies offer a rebate for CertainTeed Cool Roof Shingles that can save a homeowner as much as $600 for an average 3,000 square foot roof. And according to CertainTeed, most of the roofs in the world, including more than 90% of the roofs in the United States, are dark-colored.

Many of Polyglass’s roof coatings, such as PG 700 and the PolyBrite line of elastomeric and silicone coatings products, comply with 2016 Title 24 Part 6 cool roof requirements when the white color is selected. Many of these coatings also confer other benefits, such as integrated fire retardant and fungal and algae resistance.

There is a difference between roof coatings and roof paints. “Roof coatings work much better than simple roof paint because coatings are chemically designed to withstand environmental stresses such as temperature changes,” explains Polyglass management. “Roof paint is much thinner and is not intentionally designed for performance.”

Roof coatings are often acrylic- or silicone-based that can be applied over a variety of existing roof types including modified bitumen, EPDM, TPO, PVC, and metal — although multiple coats are typically needed. Using white roof coatings keep the surface temperature within 15°F of the ambient temperature.

Green Roofs As Cool Roofs

Green roofs and reflective roofs are both considered cool roofs. A green roof is a layer of vegetation planted over a waterproofing system that is installed on top of a flat or slightly sloped roof. Green roofs can be installed on a wide range of structures such as parking garages and industrial facilities. Green roofs can be installed on apartments or other residences to provide a place to relax amid some greenery or even grow vegetables. The vast majority of green roofs are installed as a solution to stormwater runoff issues, to reduce energy consumption, and to reduce the effects of smog and the heat island effect. While green roofs lower the need for heating and cooling, they can be much more expensive to implement. Green roofs can stay cool by evaporating water, but they are not rated by the CRRC.

Photo courtesy David Aquilina

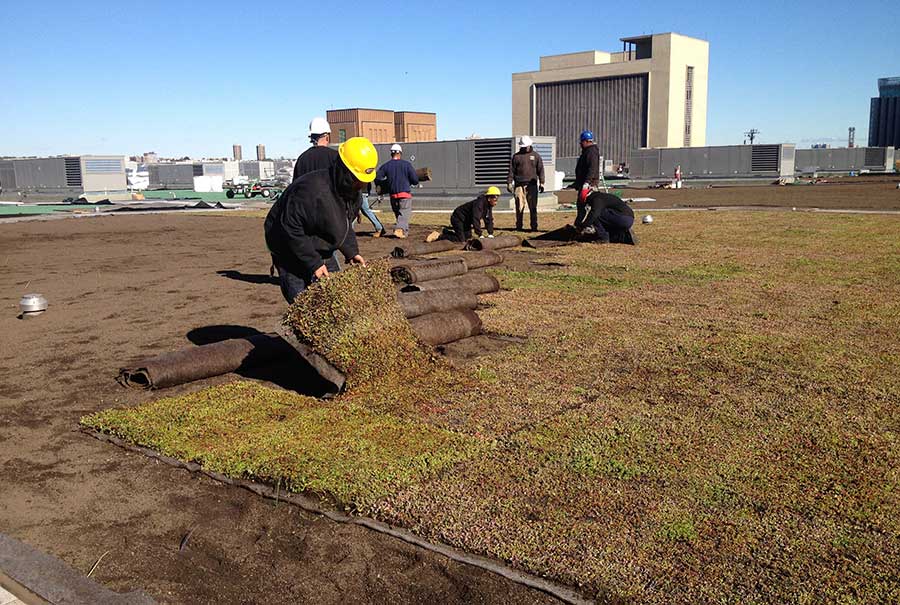

The vegetation for the Javits Center green roof was installed as pre-grown mats.

Reflective roofs are those that are created through the use of roof coatings similar to very thick paint with special reflective pigments that reflect sunlight. These coatings not only reflect sunlight but also protect the roof surface from ultra-violet (UV) light and chemical damage.

Disadvantages of Cool Roofs

Cool roofs deflect some heat gain during winter months, but in general, studies show that cool roofs result in net energy savings, especially in areas where electricity prices are high. There is potential for unwanted glare, especially with large reflective roofs. Light-colored roofing materials may show more grime than other shades. Roofing Contractor points out that one significant disadvantage to a green roof is that it requires irrigation and maintenance such as weeding and fertilizing. And finally, green roofs tend to be heavier than some structures can handle.
